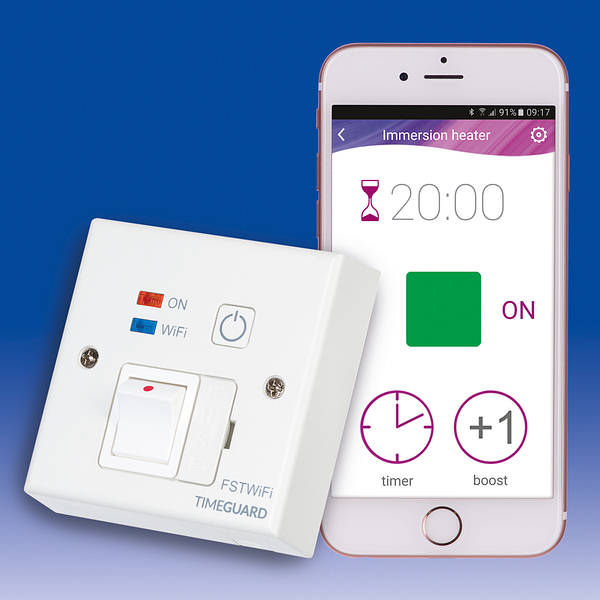

WiFi Controlled 13A Fused Switched Spur

Description

Programme settings are all activated via your mobile device, giving you
access to control your installation at any time, no matter where you are.

Available for Android and iOS only.
Works with WiFi and 4G.
Can reduce running costs if unwanted programmes are cancelled.
Supports multiple devices and multiple users.
Auto mode, with permanent ON, permanent OFF and holiday modes.
Optional 1 and 2 hour boost.
Advance function.
Supports additional programme sets, for half terms, holidays and seasonal programmes.
6 ON/OFF periods, with daily repeats.
Positive ON/OFF status, with colour coded display.
Graphic representation and summary of output.
Automatic summer/winter changeover.

Technical Ratings.

• Operating voltage 230V 50Hz.
• 13A rated suitable for 3kW
• Manual override.
• Replaceable 13 Amp BS1362 fuse.
• Fits standard 25mm deep single wall box.
• Direct retrofit for BS1363 fused connection unit.
• Double pole isolating switch.
• Operating temperature 0 – 40°C.

• Timer Mode -Wi-Fi Controlled Fused Spur
• App – Available for Android and IOS only.
• Works with WiFi and 4G.
• Operating Voltage – 230V AC.
• Switch Rating – 230V AC 13A Resistive (3kW).
• Operating Temperature – 0 to 40ºC.
• Fuse – Replaceable 13 Amp BS1362 fuse.

Perfect for:
• Home
• Indoor
• Outdoor
